| Usage/Application | Industrial |
| Material | cast iron |
| Brand | Unisoft |
| Surface Treatment | Phosaphating |
| Country of Origin | Made in India |
Product Details
Established in the year 2006, we “unisoft Pheripherials”are affianced in manufacturing and supplying a comprehensive range of Transmission Pulleys, Flexible Couplings, Transmission Bushes, Slide Rails, Chain Sprockets and CI Castings. Used for mechanical power transmission purposes, these products find extensive usage in several industries. By following international quality standards, we manufacture these transmission products from quality assured raw material and the latest technology. Our offered transmission products are applauded in the market due to their features like excellent strength, sturdiness, durability, precise dimensions, corrosion resistance and easy installation. We provide these transmission products in several specifications, in order to attain the maximum satisfaction of the clients. Quality of these transmission products are stringently tested on diverse parameters in order to provide defect free range to the clients. Furthermore, we provide these transmission products in large quantity within given time period.
Application
Allow easy installation application for any rotating parts (Rotors, Pulleys, Sprockets, Impellers) to a shaft.
Installation – Remove
Do not use lubricants or anti seize compounds on bushing and hub mounting area.
Bushing Material

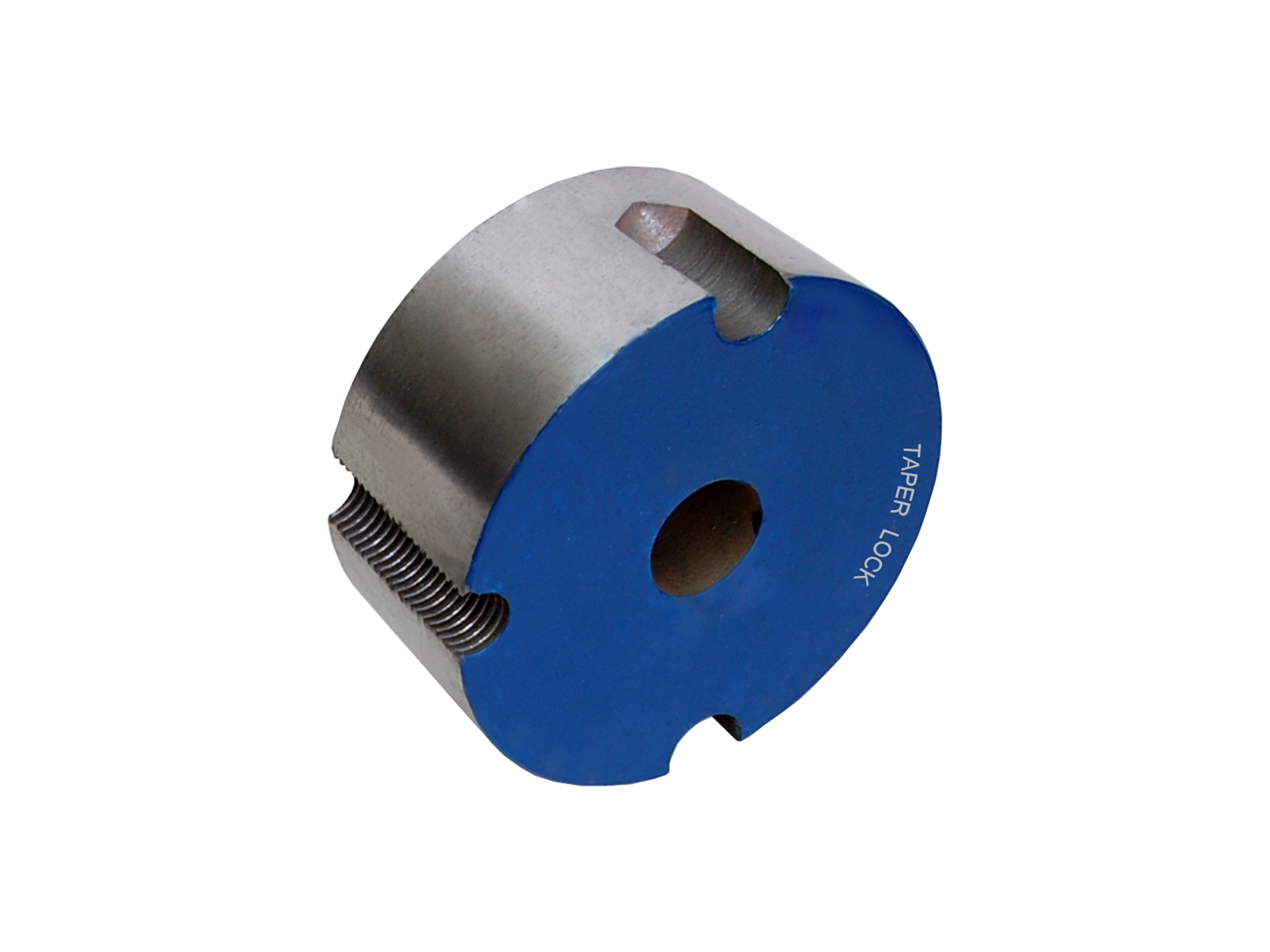

Taper bushing material – Close cast iron FG20.
Spheroidal graphite (S.G.) iron for higher stress applications.
As per customer requirement.
Quick Installation
Insert bush in hub and align drilled holes of bushing with tapped holes in hub.
Grease the thread and point of grub screw or, in case of cap screws, grease the threads and under the head. Insert screws through tapped holes in pulley hub and thread loosely.
Position assembly on shaft and tighten screws progressively and uniformly until fully secured grip is obtained.
After the drive has been running under load for a short time, stop and check tightness of screws.
Fill empty holes with grease to exclude dirt.
Tapered Precision Fit
Precision machining of the tapered bore in the component and the tapered mating surface of the bushing ensures a snug, precision fit between rim and bushing.
Fast Remove
Remove screws from hub and thread into tapped holes in bushing. Tighten alternately until bushing is free from hub.
Remove assembly from shaft.
Fully Interchangeable with Other TB Bushings
As in the case of Derk taper bushings & pulleys, they also conform to standardized dimensions. Because of this feature, stock bushings may be interchanged with the same size bushing.
Important Reminder
All operational power transmission products, when used in a drive, are potentially dangerous and must be guarded by the user as required by applicable laws, regulations, standards, and good safety practice.
| Bushing No. | Bore Size Min (mm) | Bore Size Max (mm) | No. of Screws | Size of Screws | Major OD A (mm) | Total Length (mm) | Approx Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1008 | 9.52 | 25 | 2 | 1/4 X 1/2 | 33.32 | 22.23 | 0.120 |
| 1108 | 9.52 | 28 | 2 | 1/4 X 1/2 | 38.37 | 22.23 | 0.150 |
| 1210 | 11.00 | 32 | 2 | 3/8 X 5/8 | 47.62 | 25.40 | 0.260 |
| 1215 | 11.00 | 32 | 2 | 3/8 X 5/8 | 47.62 | 38.10 | 0.380 |
| 1610 | 14.00 | 42 | 2 | 3/8 X 5/8 | 57.15 | 25.40 | 0.390 |
| 1615 | 14.00 | 42 | 2 | 3/8 X 5/8 | 57.15 | 38.10 | 0.570 |
| 2012 | 14.00 | 50 | 2 | 7/16 X 7/8 | 69.80 | 31.75 | 0.750 |
| 2017 | 14.00 | 50 | 2 | 7/16 X 7/8 | 69.80 | 44.45 | 1.000 |
| 2517 | 16.00 | 60 | 2 | 1/2 X 1 | 85.72 | 44.45 | 1.600 |
| 2525 | 16.00 | 60 | 2 | 1/2 X 1 | 85.72 | 63.50 | 2.220 |
| 3020 | 25.00 | 75 | 2 | 5/8 X 1 1/4 | 107.96 | 50.80 | 2.800 |
| 3030 | 25.00 | 75 | 2 | 5/8 X 1 1/4 | 107.96 | 76.20 | 3.900 |
| 3535 | 35.00 | 90 | 3 | 1/2 X 1 1/2 | 127.00 | 88.90 | 6.520 |
| 4040 | 40.00 | 100 | 3 | 5/8 X 1 3/4 | 146.00 | 101.60 | 9.720 |
| 4545 | 55.00 | 110 | 3 | 3/4 X 2 | 161.92 | 114.30 | 13.000 |
| 5050 | 77.00 | 125 | 3 | 7/8 X 2 1/4 | 177.80 | 127.00 | 15.500 |
- Approx weight in kg for a minimum bore size.
- A taper bushing is defined by a 4 digit representing two numbers. The first numbers represent the maximum bore size (in inches). The second numbers represent the bushing length (in inches).
- For example: a 1210 has a max bore of 1.2” and total length 1.0”.
